Casino and Gaming Millwork Detailing The hardest environment in commercial interiors.

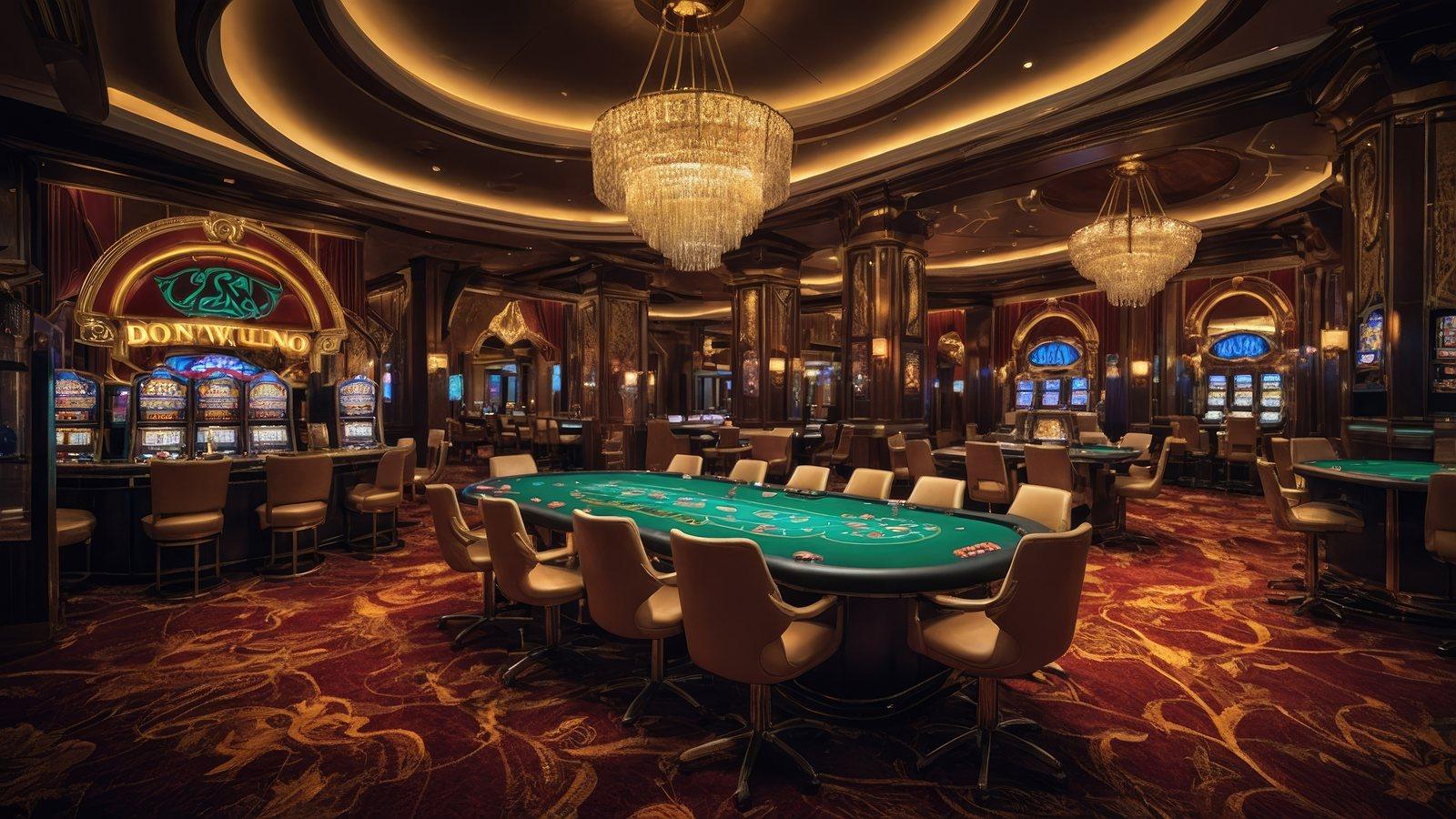

Gaming floors are the hardest millwork environment in commercial interiors. Almost nothing on the floor is one material, almost nothing closes for maintenance, and the installation window is usually whatever hours the property can afford to lose.
What this sector demands
- Fixtures that are never one material.
- A bar front, a cage surround or a slot base is a metal frame carrying wood, glass, acrylic and often an integrated lighting or power run. Drawn by two vendors, those meet for the first time on the assembly floor.
- Continuous-use construction.
- Nothing shuts for a quiet period. Edge treatments, drawer hardware and touch surfaces carry a duty cycle closer to transport interiors than to commercial fit-out, and the detail has to reflect that rather than the appearance drawing.
- Installation into a live building.
- Sections, field joints and access routes matter more here than almost anywhere else, because the item has to reach the floor through a working property and be assembled overnight.
- Feature geometry that is not standard casework.
- Curved bar fronts, faceted surrounds and continuous surfaces that must be built from discrete pieces. These are the items where a section through the drawing does not describe the shape, and where 3D modelling stops being optional.
Where packages fail here
- The interface nobody drew.
- The single most common failure, and it is the reason mixed-material work needs one drawing set rather than two.
- Items that cannot reach the floor.
- A bar front built in one piece, drawn without reference to the service lift or the route from the loading bay, at a property where the gaming floor cannot close for a day.
- Lighting and power provision added after detailing.
- Routing, access and clearance decided once the carcass is already dimensioned, which forces either a visible compromise or a rebuild.
- Finish build-up eating the clearance.
- Powder-coated frame plus finished wood, both dimensioned nominally, meeting at a joint that had no allowance for either.
Sector requirements
Services that apply
FAQ
Frequently Asked Questions
Can you detail the metal frame as well as the casework?
Sheet-metal parts and flat patterns are handled in-house. Welded assemblies are detailed with our fabrication specialists where the scope requires it. Either way you get one set and one point of responsibility.
Our fit-out window is a few nights. Does detailing help with that?
It is where most of the help sits. Field joints, sections, access routes and assembly sequence are decided on the sheet, so the crew is not solving them at two in the morning.
Do you handle the lighting and power integration?
Provision within the fixture is detailed: routing, access, mounting and clearance. Electrical design and certification sit with the qualified party on the project.
We already have a metal vendor. Is that a problem?
No, and it is common. We detail the interface against what your metal vendor is actually producing, using their drawings and their tolerances.
Send a gaming floor package that gave you trouble on assembly
The interface conditions that caused it are usually visible in the drawings.
